Product Introduction

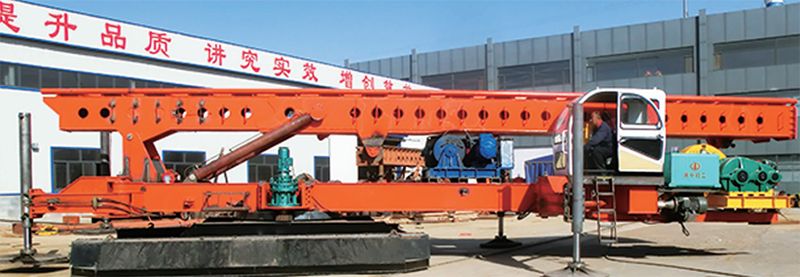

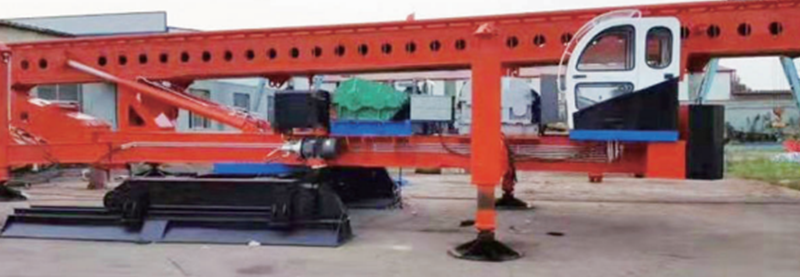

The diesel hammer pile frame adopts a hydraulic walking chassis, which has a high degree of automation, can load and unload the truck by itself, can walk freely, and can rotate 180 degrees. It is equipped with four hydraulic cylinder legs, one luffing cylinder and two landing gear cylinders, showing its unique advantages in harsh construction environment and increasing the stability of the whole machine during construction. The diesel pile driver can lift the pile frame by itself, with accurate alignment, multi-purpose machine, high construction efficiency, low labor intensity and strong adaptability. It is widely used in the construction of cement pipe piles, metal piles, concrete prefabricated piles, cast-in-place piles, rammed piles, lime-soil compaction piles and other piles.
Main technical parameters
| Model \Item | Model | |||
| DCB60-15 | DCB80-15 | DCB100-15 | ||
| Diesel hammer model | * | Dd63 | Dd83 | Dd103 |
| Main winch | Control | 5T | 8T | 10T |
| Auxiliary winch | Control | 4T | 5T | 5T |
| Overall dimension | Working status | 10*3.5*19.1m | 12.5*4.6*29.2m | 14.3*4.7*29.2m |
| Immersed tube diameter | * | 500mm | 600mm | 600mm |
| pile crane quality | * | 36T | 48T | 52T |
Some engineering examples
 |
 |
Hydraulic walking diesel hammer pile driver
