Product Introduction

The pile machine adopts the folding square column, the installation and disassembly into the field is fast and convenient, the labor intensity is low, save time and reduce costs. The electrical and hydraulic operations of the whole machine are concentrated in the driver's building, which can quickly complete the processes of landing boom, rotation, walking, positioning, drilling, etc. The operation is simple, the maintenance is convenient, and the hole forming, pile forming and one machine are completed simultaneously. It is the ideal equipment for foundation pile foundation construction. Suitable for CFG pile construction method, high-speed rail, airport, high-rise residential building construction and other geotechnical foundation construction of environmental protection products.

Main technical parameters

Item \Model	CFG18	CFG20	CFG24	CFG26
Hole diameter mm	300-600	400-600	400-800	400-800
Pile depth m	18	20	24	26
Power head power kW	45 × 2	45 × 2	55 × 2	55 × 2
Maximum lifting force kN	240	240	240	240
Main engine speed r/min	24	24	21	21
Output torque kN.m	35	35	50	50
Walking step distance mm	1500	1500	1500	1500
Rotation angle °	±180	±180	±180	±180

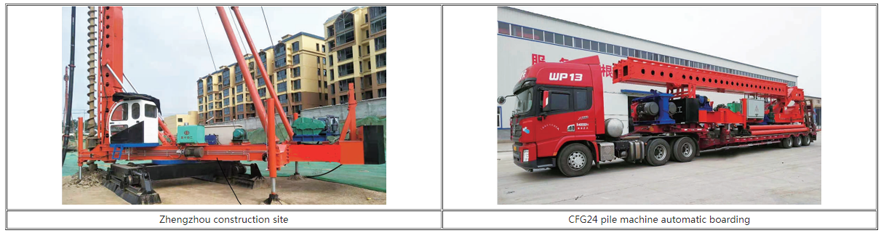

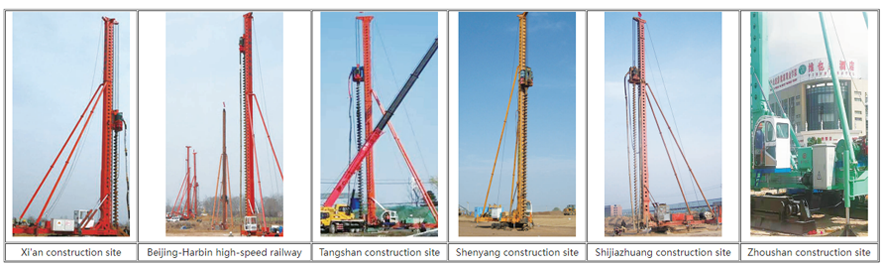

Some engineering examples

The pile machine adopts the folding square column, the installation and disassembly into the field is fast and convenient, the labor intensity is low, save time and reduce costs. The electrical and hydraulic operations of the whole machine are concentrated in the driver's building, which can quickly complete the processes of landing boom, rotation, walking, positioning, drilling, etc. The operation is simple, the maintenance is convenient, and the hole forming, pile forming and one machine are completed simultaneously. It is the ideal equipment for foundation pile foundation construction. Suitable for CFG pile construction method, high-speed rail, airport, high-rise residential building construction and other geotechnical foundation construction of environmental protection products.
